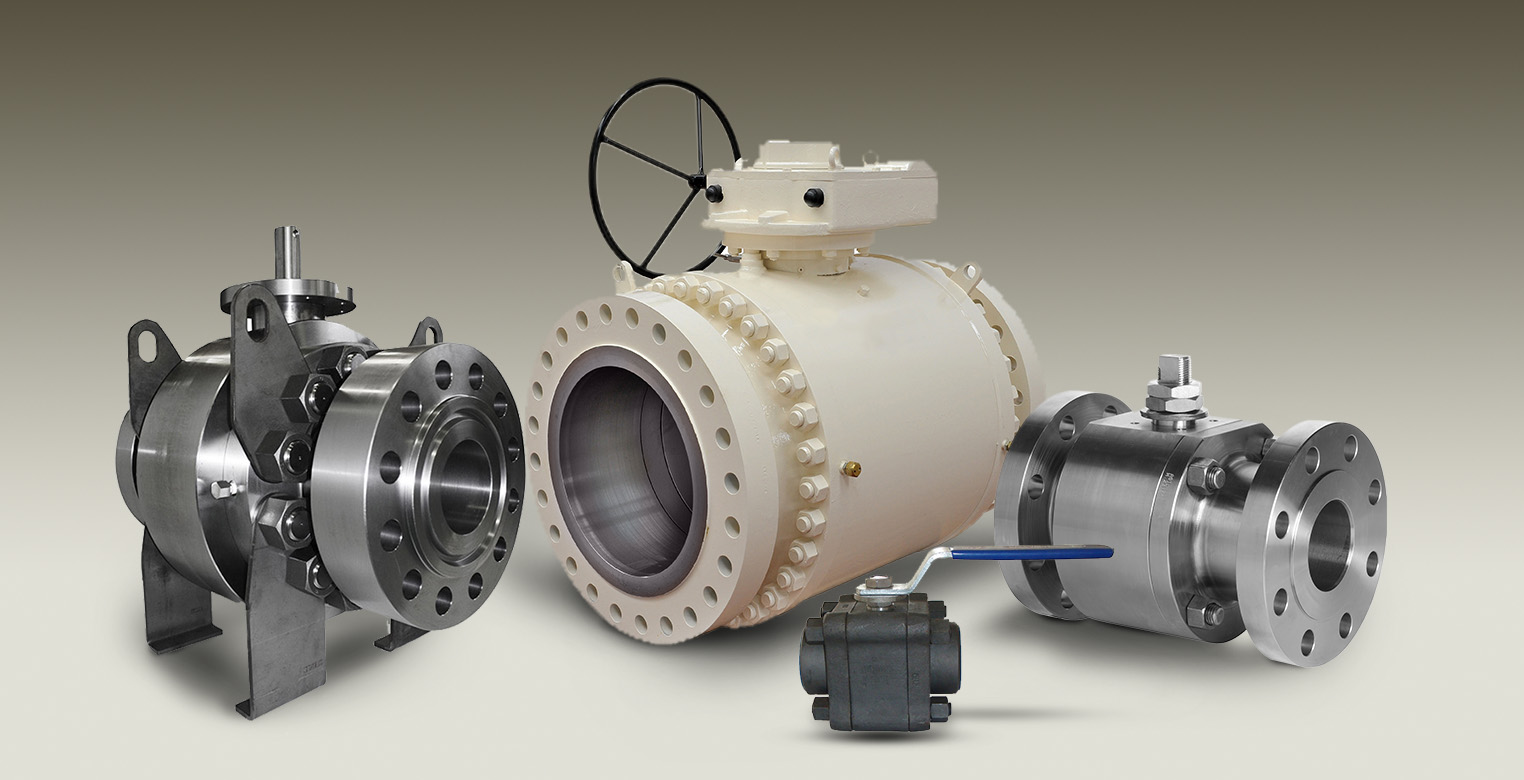

BALL VALVE
Full Welded Ball Valve
| Type: | Ball Valve | 1.Fully Welding Body Structure 2.Blow-out Proof Stem 3.Fire Safe Tested Design 4.Anti-static Device 5.ISO5211 Mounted Pad 6.Double Block & Bleed 7.Cavity Pressure Relief 8.Low Emission Design 9.Secure Line Flow Locking Device 10.VITON AED Delta Ring Seat Seal 11.Optional Double Piston Effect Seat Ring 12.Optional Buried Design, Extended Stem |
| Size: | 2”~60 | |
| Rating: | 150~2500LB(PN16~PN250) | |
| Material Body: | Carbon Steel, Stainless Steel | |
| Trim: | A105N+ENP, 13Cr, F304, F316 | |
| Connection: | RF, RTJ, BW |
Metal Seated Ball Valve
| Type: | Floating and trunnion mounted ball valve | 1.Metal to metal seal design between ball and seats 2.Double block and bleed 3.Cavity pressure self relief 4.Blowout-proof stem 5.Seat designed with dust-proof and automatic cleaning function 6.Antic-static device |
| Size: | 1/2~42”（DN15~DN600） | |
| Rating: | 150~1500LB（PN16~250） | |
| Temp. Range: | ≤450℃ | |
| Material Body: | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel | |
| Trim: | Tungsten carbide, Stellite |
Floating Ball Valve
| Type: | Ball Valve | 1.Fully Welding Body Structure 2.Blow-out Proof Stem 3.Fire Safe Tested Design 4.Anti-static Device 5.ISO5211 Mounted Pad 6.Double Block & Bleed 7.Cavity Pressure Relief 8.Low Emission Design 9.Secure Line Flow Locking Device 10.VITON AED Delta Ring Seat Seal 11.Optional Double Piston Effect Seat Ring 12.Optional Buried Design, Extended Stem |
| Size: | 2”~60 | |
| Rating: | 150~2500LB(PN16~PN250) | |
| Material Body: | Carbon Steel, Stainless Steel | |
| Trim: | A105N+ENP, 13Cr, F304, F316 | |
| Connection: | RF, RTJ, BW |
Trunnion Mounted Ball Valve
| Type: | 2 PC Side Entry | 1.Full port or reduce port 2.Fire safe certified 3.Double block & bleed 4.Emergency sealant injection 5.Cavity pressure self relief 6.Blowout-proof stem 7.Antic-static 8.Optional double piston design |
| Size: | 2~24”（DN50~DN600） | |
| Rating: | 150~1500LB(PN16~PN250) | |
| Material Body: | Carbon Steel, Stainless Steel,Duplex Steel | |
| Trim: | Carbon Steel, Stainless Steel, Duplex Steel | |
| Type: | Top Entry | |
| Size: | 2~36”（DN50~DN900 | |
| Rating: | 150~1500LB（PN16~PN250） | |
| Material Body: | Cast Carbon Steel, Stainless Steel, Duplex Steel | |
| Trim: | Carbon Steel, Stainless Steel, Duplex Steel | |
| Type: | 3 PC Side Entry | |
| Size: | 1-1/2~60”(DN40~DN1500) | |
| Rating: | 150~2500LB（PN16~PN420） | |
| Material Body: | Forge Carbon Steel, Stainless Steel, Duplex Steel | |
| Trim: | Carbon Steel, Stainless Steel, Duplex Steel |
