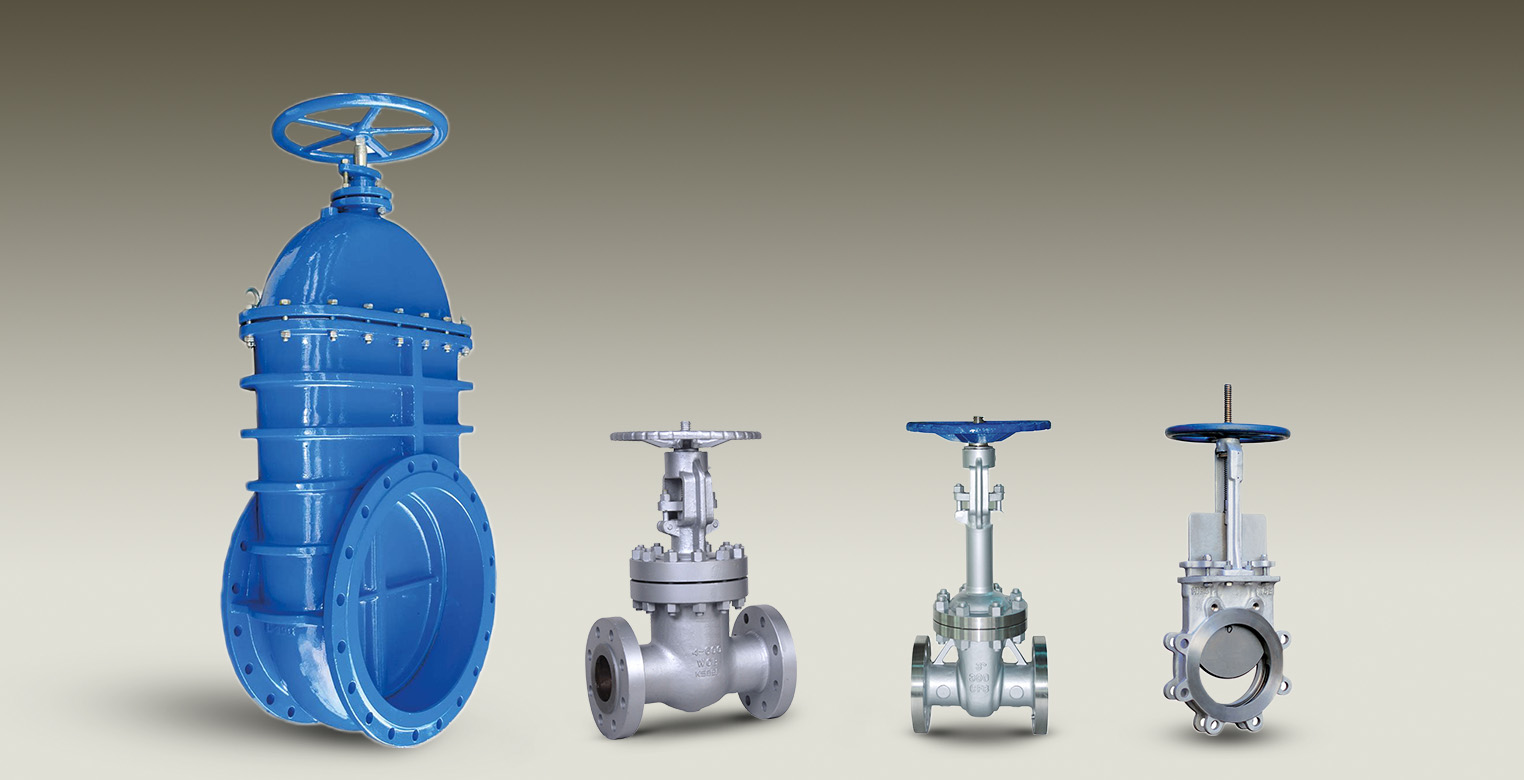

GATE VALVE
Operation: | Manual / MOV / AOV / HOV / Electrohydraulic |
Types: | Wedge Gate/ through conduit / Double expanding |
Construction: | Bolted bonnet / Pressure seal |
Disc type: | Solid / Flexible/ Split /Parallel slide |
Standard features: | OS&Y / Backseat |
Material: | • Carbon Steel valves • Low temperature carbon steel • High temperature alloy steel • Stainless Steel Valves • Super Austenitic Stainless Steel • Duplex Stainless Steel • Super Duplex Stainless Steel • Ni Alloy • Titanium • Aluminum bronze |
Standards | Sizes |
ANSI B16.34 API 600 API 6D BS – 1414 | 1/2”-72” 150# 1/2”-64” 300# 1/2”-48” 600# 1/2”-42” 900# 1/2”-36” 1500# 1/2”-30” 2500# 1/2”-24” 4500# |
API 6A | 2-1/16”- 7 1/16” 2000 psi 2-1/16”- 7 1/16” 3000 psi 2-1/16”- 9” 5000 psi 1-13/16”- 7 1/16” 10000 psi 1-13/16”- 5-1/8” 15000 psi 1-13/16”- 3-1/16” 20000 psi |
